Flir C5 Thermal Camera

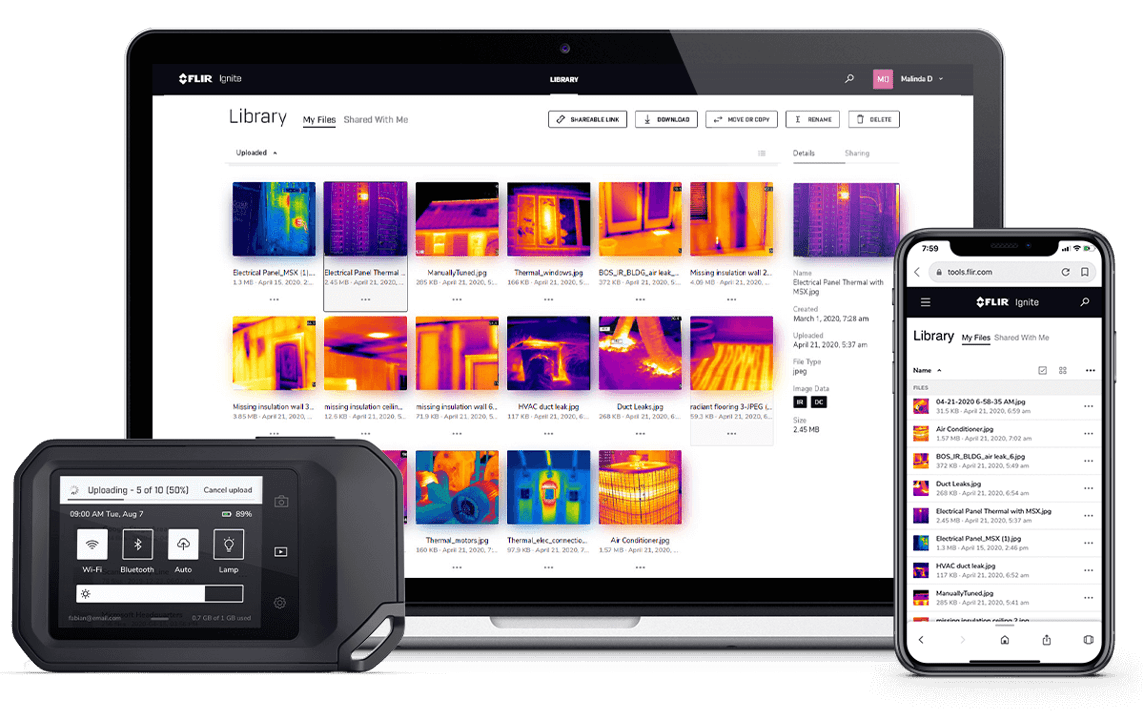

With the FLIR C5 in your pocket you’ll be ready anytime to find hot fuses, air leaks, plumbing issues, and more. Identifying hidden problems is easy with the 160 x 120 (19,200 pixels) true thermal imager, MSX® (Multi-Spectral Dynamic Imaging), 5-megapixel visual camera, and LED flashlight. The C5 directly uploads and stores your images to the FLIR Ignite™ cloud, where you can organize and back up files. Then instantly share images with customers or create professional reports that document the problem and required repairs.
Inspect, document, and share quickly with cloud connectivity and Wi-Fi
FIND AND TROUBLESHOOT Quickly find hidden faults and reduce diagnostic time thanks to MSX, 160 x 120 true thermal imaging, and 1-Touch Level Span
DOCUMENT AND SHARE Directly upload images using FLIR Ignite cloud connectivity, then create professional reports and email them to customers
RUGGED, RELIABLE, COMPACT Take the pocket-portable C5 with you to every job – it’s IP54 rated for protection against water and dust and designed to withstand a 2 m drop
SPECIFICATIONS
OVERVIEW
- Camera size: (L x W x H) 138 x 84 x 24 mm (5.4 x 3.3 x 0.94 in)
- FLIR Screen-EST Mode: No
- IR Sensor: 160 x 120 (19,200 pixels)
- Screen Rotation: Yes
- Touchscreen: Capacitive touch
SYSTEM OVERVIEW
- Color Palettes: Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
CONNECTIONS & COMMUNICATIONS
- Bluetooth PAN
- Image Upload: Directly upload images to FLIR Ignite cloud library and services
- USB: USB 2.0, Type-C connector
- WiFi: 802.11 a/ac/b/g/n (2.4 and 5 GHz)
ENVIRONMENTAL
- Drop test: 2 m (6.6 ft)
- Tripod Mounting: UNC ¼”-20 (built-in)
ENVIRONMENTAL & APPROVALS
- Encapsulation: Camera housing and lens: IP54 (IEC 60529)
- Operating Temperature Range: -10 to 50°C (14 to 122°F)
- Storage Temperature Range: -40 to 70°C (-40 to 158°F)
GENERAL
- External Power Operation: 5 V, USB-C
IMAGING & OPTICAL
- Digital Camera: 5 MP
- Digital Camera Focus: Fixed
- Gallery: Thumbnails and custom folder structure
- Image Adjustment: Automatic level and span, Manual level and span, 1-Touch Level/Span
- Image Modes: Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image)
MEASUREMENT & ANALYSIS
- Measurement Functions: Spot, Box with max./min.
- Measurements correction: Emissivity; matt/semi-matt/semi-gloss + custom value, Reflected apparent temperature, Atmospheric compensation
- Thermal Sensitivity: <70 mK
MEASUREMENT & ANALYSIS
- Object Temperature Range: -20 to 400°C (-4 to 752°F)
PERFORMANCE
- Accuracy: At ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F), 0 to 100°C (32 to 212°F): ±3°C (±5.5°F), 100 to 400°C (212 to 752°F): ±3%
PHYSICAL FEATURES
- Screen Size: 3.5 in
- Weight [including battery]: 0.19 kg (0.42 lb)
POWER
- Battery operating time: 4 hours
- Battery type: Rechargeable built-in Lithium ion battery
- Charging system: USB-C (1 A)
- Charging Time: 2 hours
STORAGE MEDIA
- File Formats: Standard JPEG, 14-bit measurement data included
- Image Storage: >5000 images
- Storage Media: Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)
THERMAL IMAGING
- Focus: Focus free
VISIBLE CAMERA
- Image Frequency: 8.7 Hz
- Minimum Focus Distance: Thermal: 0.1 m (3.94 in), MSX: 0.3 m (11.8 in)
- Spectral Range: 8 to 14 µm

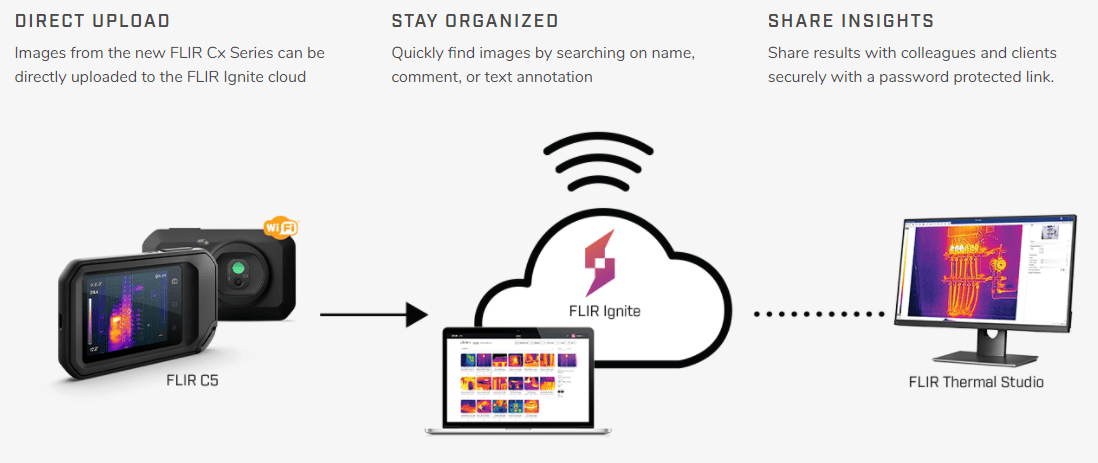

- Flir Ignite Cloud Service
- The FLIR Cx Series camera connects automatically to the FLIR Ignite Library, offering cloud storage for thermal images. Upload, organize and share files with customers or colleagues.
